Workplace Documents, Drawings and Information for Plumbers (Level 2 Guide With 10-Question Mock Test)

A commercial plumbing job comes with a substantial paper trail — job specifications telling you what to fit and the standard to meet, schedules listing what goes in each property, programmes of work sequencing tasks, scale drawings showing where pipes should go, delivery notes confirming what materials arrived, time sheets recording hours worked, and policy documents setting out company procedures. Level 2 expects you to recognise each document, understand its purpose, and know when it applies.

This post is the second in the Level 2 Communicating With Others sub-cluster. For the others, see the construction roles, customer communication, employment and conflict resolution posts.

Legislation vs guidance — the starting point

Before the specific documents, a distinction worth getting clear.

Legislation = law. Acts (like the Health and Safety at Work Act) and Regulations (like the Water Regulations or Building Regulations) are statutory — breaking them can lead to prosecution, fines, or imprisonment. You meet these documents throughout every other cluster.

Guidance = best practice. Documents that help you meet or exceed the legal requirements but aren't law themselves.

Four main categories of guidance:

British Standards (BS). Documents produced by the British Standards Institute (BSI) setting out agreed-on best practice. BS EN 806 (parts 1-5) covers domestic cold water systems. BS EN 12056 covers drainage. Following a BS standard typically means you exceed the minimum legal requirements.

Codes of Practice (CoP). Detailed guides on how to carry out specific work safely and correctly. Often published by industry bodies.

Manufacturer's guidance. Product-specific instructions that come with appliances and components.

Kitemark. The BSI Kitemark symbol indicates a product has been tested and certified to meet a specific British Standard.

British Standards and Codes of Practice are NOT law — but they're generally expected to be followed. Courts and inspectors often use them as the benchmark when assessing whether work has been done to an acceptable standard.

Manufacturer's instructions — three types

Products typically come with three categories of instructions:

Installation instructions. For the installer. Cover fitting dimensions, pipework sizes, electrical connections, commissioning procedures.

Service and maintenance instructions. For the competent engineer carrying out ongoing service. Cover annual service procedures, fault-finding, replacement parts.

User instructions. For the customer. Cover how to operate the appliance day-to-day, safety warnings, what to do if something goes wrong.

What is NOT normally found in manufacturer's instructions: the cost of replacement parts. Appliance dimensions (A), servicing requirements (B) and commissioning procedures (C) are all standard content, but parts pricing isn't — that varies by retailer and changes over time.

Job specification

A Job Specification sets out who is responsible for each job, and the standard it must meet.

An example from the workbook: "All drainage is to be completed by Drains R Us and must meet the criteria laid out in BS 12056."

So the job spec answers two questions:

• Who is responsible for doing the work?
• What standard does the work need to meet?

Typically structured in numbered sections (General Conditions, Woodwork, Plumbing, etc.), with each section referencing relevant British Standards and manufacturer requirements.

Job specifications are legally binding when incorporated into a contract. A building contract is the legally-binding document (A work programme or estimate is not).

Schedule

A Schedule is a contract document that tells you WHAT must be fitted in each property.

The schedule is typically a table with properties or plots along one axis and fittings/appliances along the other. An X in each cell indicates what's required where.

For a new-build housing development, the schedule might show: Plot 2 has an inset sink + close-couple WC + pedestal wash basin + bath + chrome brassware. Plot 6 has a slightly different fit-out. And so on.

The schedule works alongside the job specification — the spec tells you the standard, the schedule tells you the specific components.

Programme of works

A Programme of Works sets out WHEN the work will be carried out.

The programme is typically a Gantt-style chart showing:

• Each major task
• When it starts and finishes
• Dependencies between tasks

The programme enables the site manager to schedule trades efficiently — plumbers arrive for first fix after walls are built but before plastering; second fix happens after plastering but before decoration; commissioning happens right at the end.

The purpose of a programme of works: to plan out the key milestones of the project. Not to assign tasks (that's the foreman's role), not to specify materials (that's the schedule), not to detail costs (that's the quantity surveyor's role).

The three W's — WHO, WHAT, WHEN

A mental model that helps distinguish the three main planning documents:

These three documents together describe the entire scope of a construction project at management level. Learn this framing and a lot of document-related exam questions become easier.

Other workplace documents

Beyond the three main planning documents, there are several routine paperwork items Level 2 expects you to know.

Plans / drawings. Covered in detail below.

Delivery notes (also called delivery advice notes). Lists the materials that have arrived on site. You sign it to confirm you've received the goods in good condition. Always check the materials before signing — if you can't check (e.g., palletised items you can't access immediately), specify this on the delivery note before signing.

Time sheets. Record hours worked by each operative. Used for payroll, costing, and scheduling reference.

Policy documentation. Company policies covering:

• Health and Safety policy — required if 5+ employees (covered in the H&S cluster)
• Environmental policy — how the company minimises environmental impact
• Customer service policy — how the company treats customers; may include the complaints procedure

Materials ordering flow

A specific workflow Level 2 tests:

Step 1: Requisition order (also called a purchase order). Filled out by the person needing materials. Sent to the buyer at the company office.

Step 2: Buyer orders materials from the supplier (merchant).

Step 3: Delivery advice note arrives with the materials. Lists the goods delivered. You sign it to evidence that materials arrived in good condition.

Step 4: Invoice sent by the merchant to the company. An invoice is a formal bill stating how much is owed.

Purpose of an invoice: to allow seller and buyer to keep track of payments. Not to order materials (that's the requisition order), not to list what was delivered (that's the delivery note).

This system lets companies track every material order, ensure invoices match what was delivered, and minimise theft or unauthorised orders.

Construction drawings — the five main types

Scale drawings communicate the design of the building to everyone involved in building it. Five types Level 2 expects you to recognise.

1. Site plan (also called a location plan). Shows the whole site laid out in the surrounding area. Used to establish where the building sits on its plot, the surrounding roads, neighbouring properties, and the site boundaries.

2. Floor plan. Top-down view of each floor of the building. Shows room layouts, walls, doors, windows, and fitted equipment.

• Typical scale: 1:50
• Standard for domestic and smaller commercial work

3. Section. A "cross-cut" of the building as if you'd sliced through it vertically. Shows the height of rooms, the relationship between storeys, and structural details.

• Typical scale: 1:50
• Usually multiple sections at different points (Section A-A, Section B-B, etc.)

4. Elevation. The external view of the building from one side. Shows how the building will look from outside when complete.

• Typically produced for all four sides (Front Elevation, Rear, Left Side, Right Side)
• Used for planning applications

5. Component drawing. Detailed drawings of specific elements — windows, doors, stairs, specific joinery.

• Typical scale: 1:50 or 1:20
• May also have sizes written directly on the drawing

The written-size rule

If a size is written on a drawing, always go with the written size rather than making an interpretation using the scale.

Why: drawings get photocopied, scanned, resized, and printed at different sizes over a project's lifetime. The scale can get distorted in reproduction, but the written dimension stays accurate. If a pipe run is dimensioned "1250mm" on a drawing at 1:50 scale, cut it to 1250mm — don't try to measure the drawing and convert using the scale.

Schematic diagrams

Different from scale drawings. A schematic shows how a system works rather than physical dimensions or layout.

Common uses:

• Heating systems — showing boiler, pump, valves, radiators and how they connect
• Electrical wiring — showing switches, circuits, loads
• Hot water systems — showing cylinder, feed, vent, and connections

Schematics use symbols rather than accurate physical representations. A radiator might be a simple rectangle with its valves shown, rather than a scale drawing of the actual radiator. The schematic tells you what's connected to what, not how big each item is or exactly where it sits.

Common plumbing symbols on drawings

The Processes cluster covers plumbing symbols in detail (in the pipe materials and installation posts). The symbols you'll regularly see include:

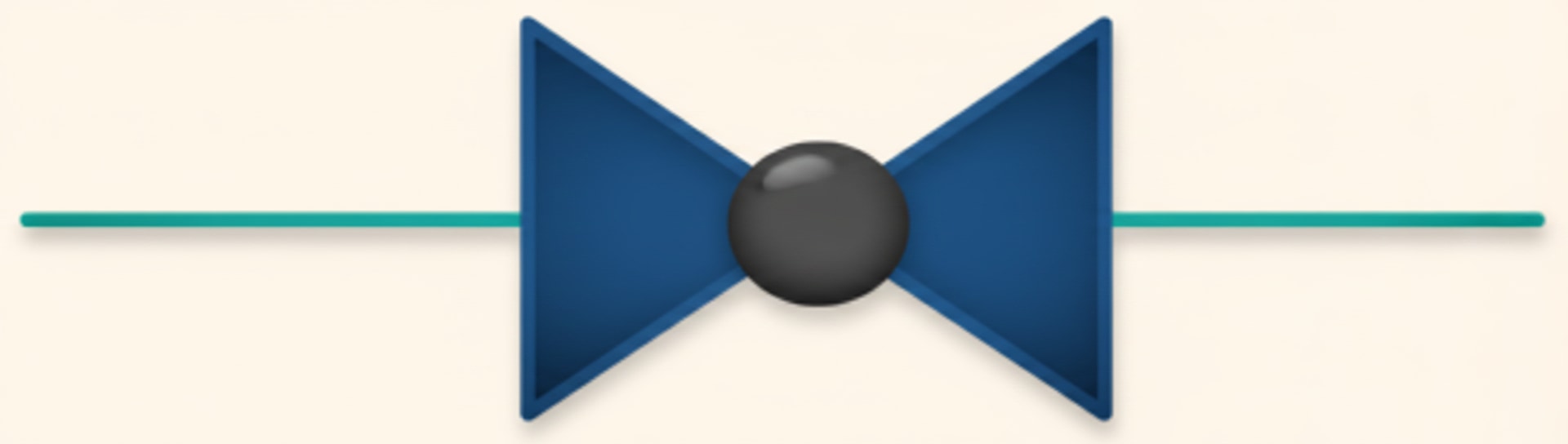

• Stop valve (for isolation)

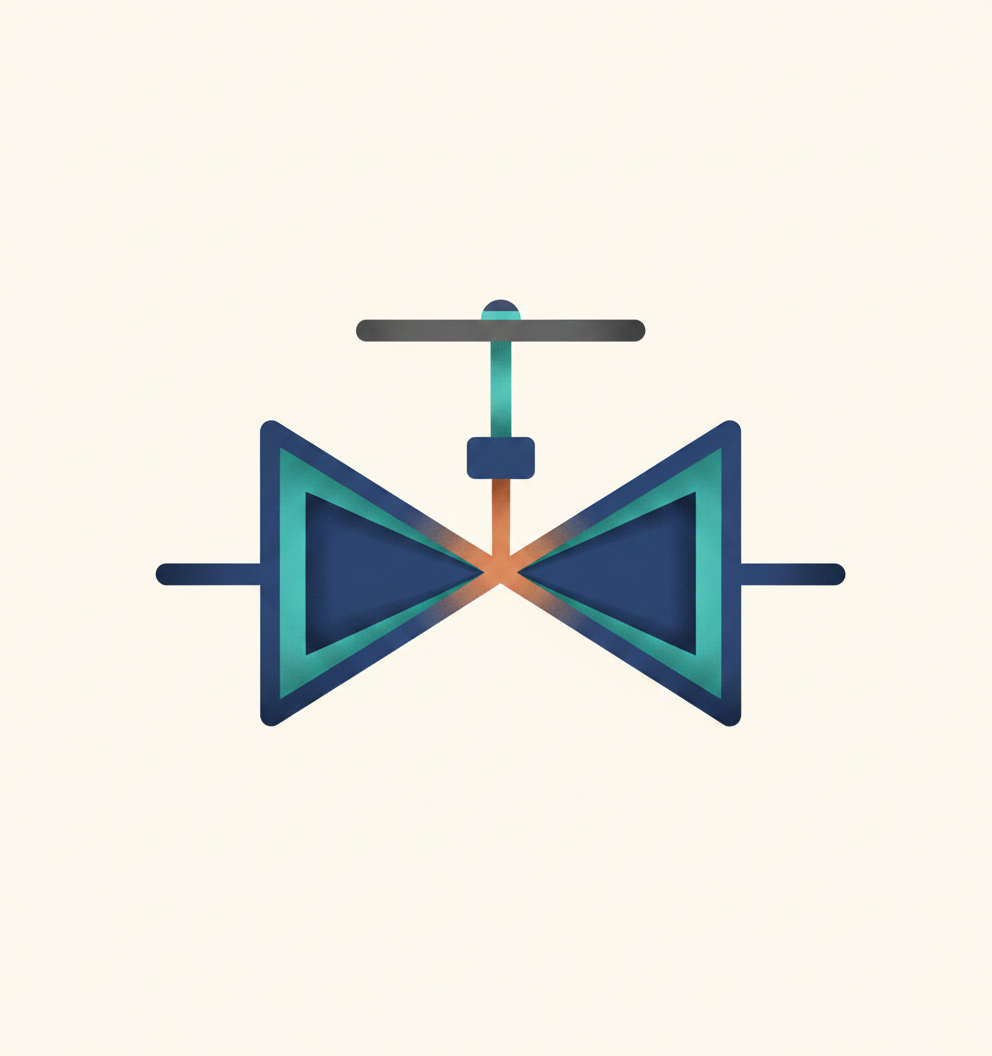

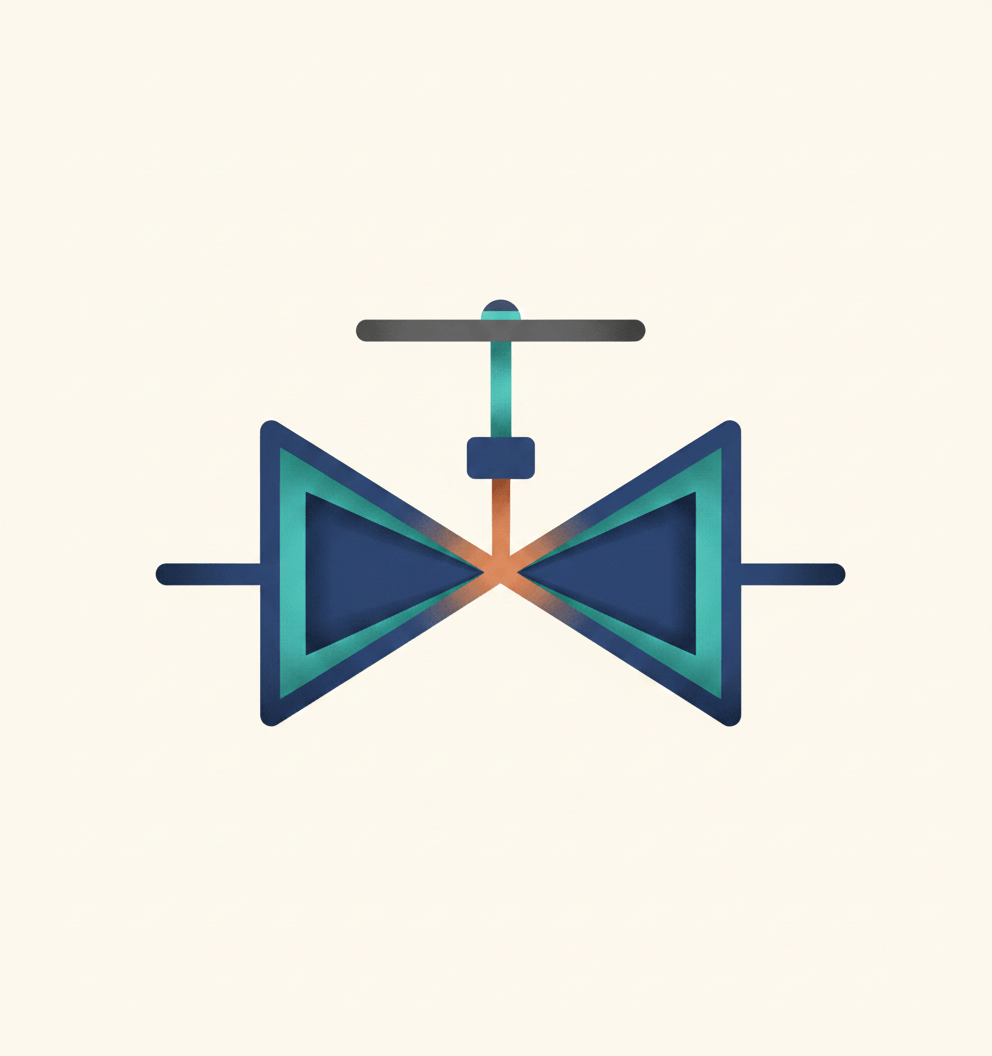

• Gate valve (low-pressure water only)
• Service valve / isolation valve (appliance isolation)

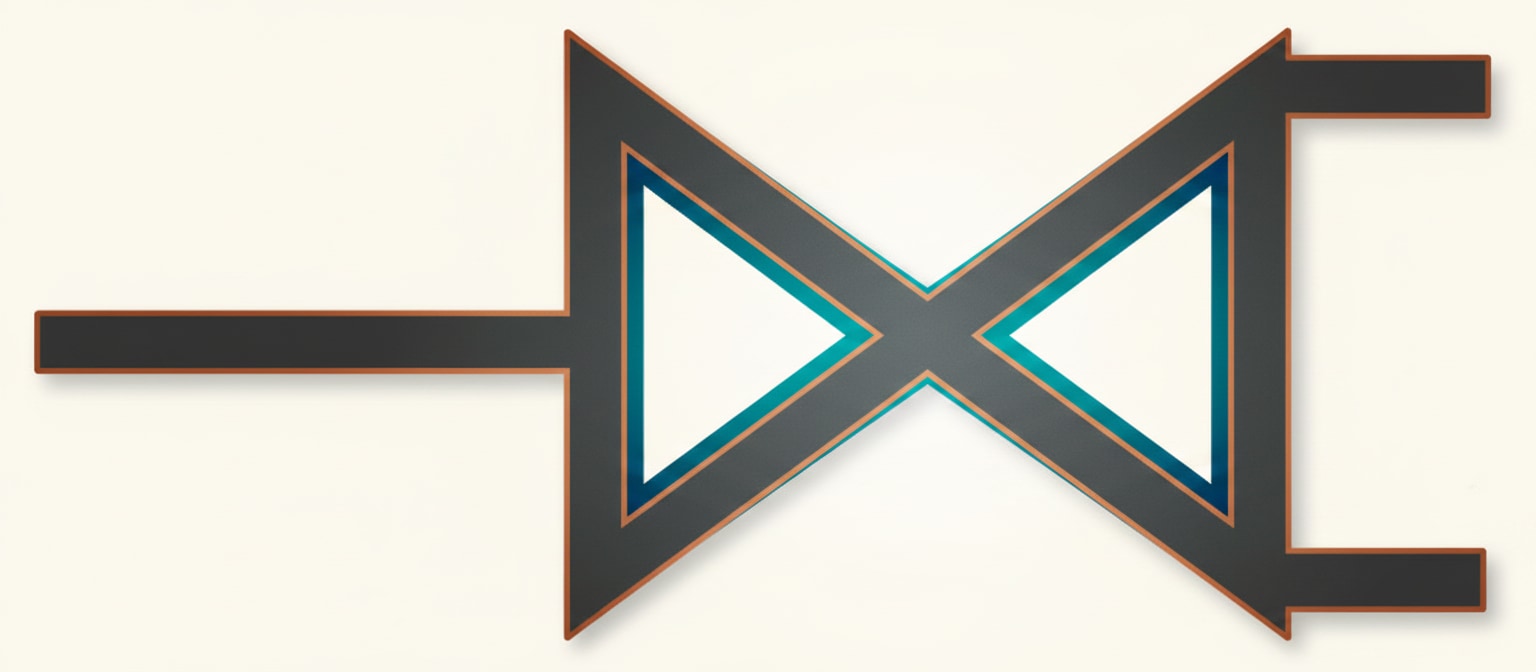

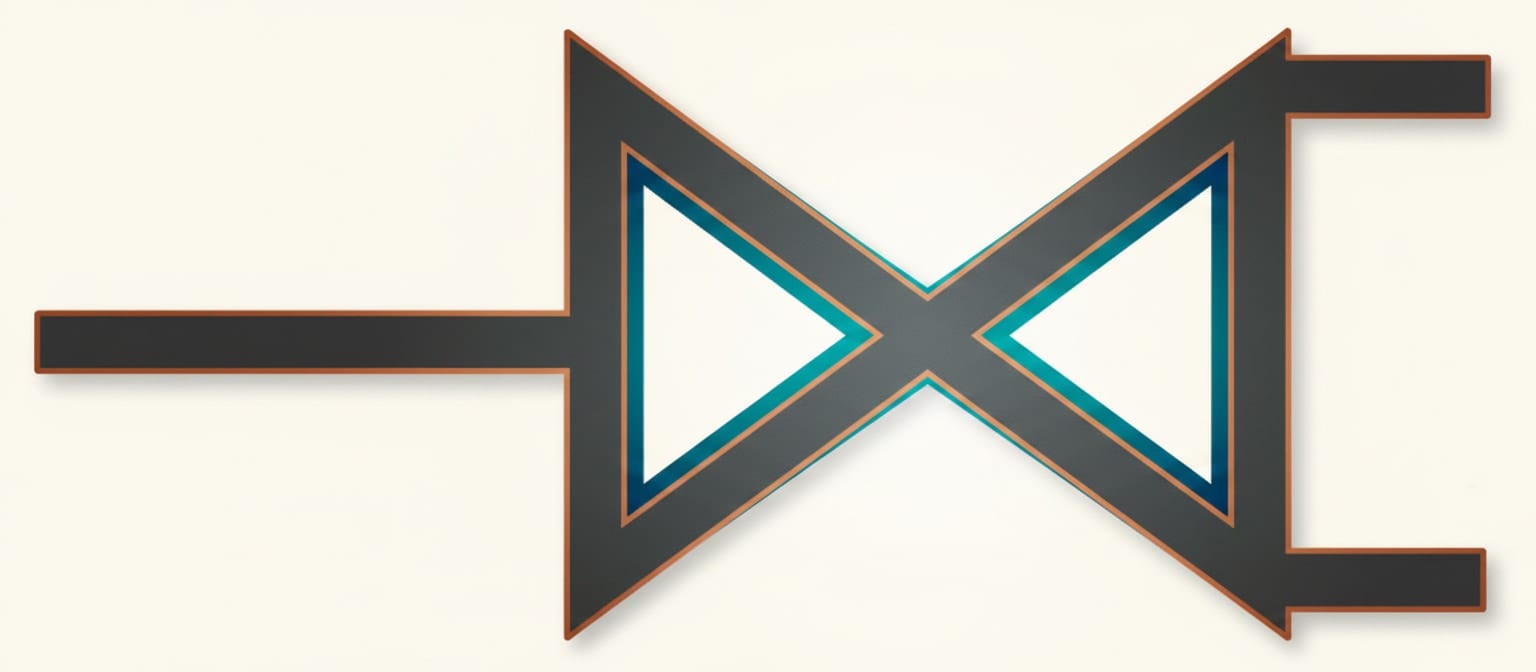

• Drain valve (draining pipework)
• Float-operated valve (cistern control)

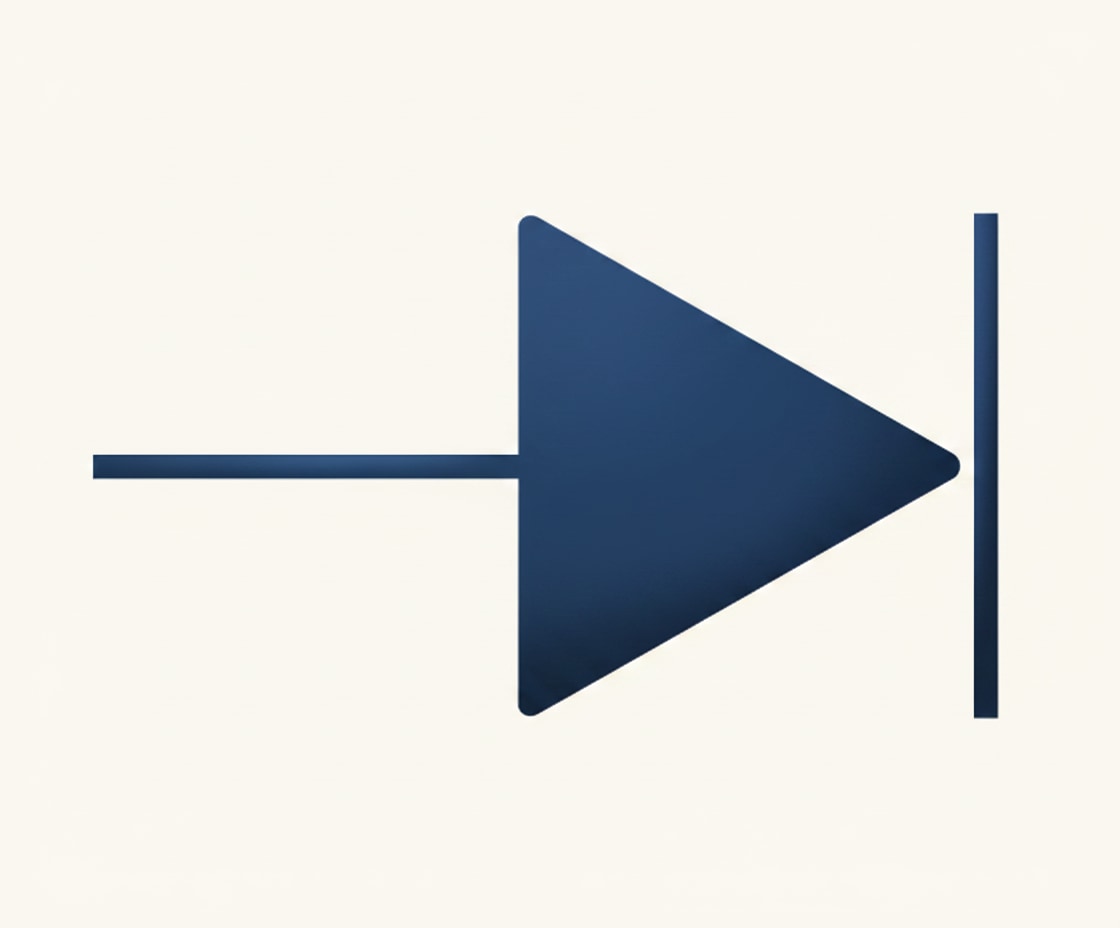

• Single check valve (low-risk backflow protection)
• Double check valve (higher-risk backflow protection, e.g., outside taps)

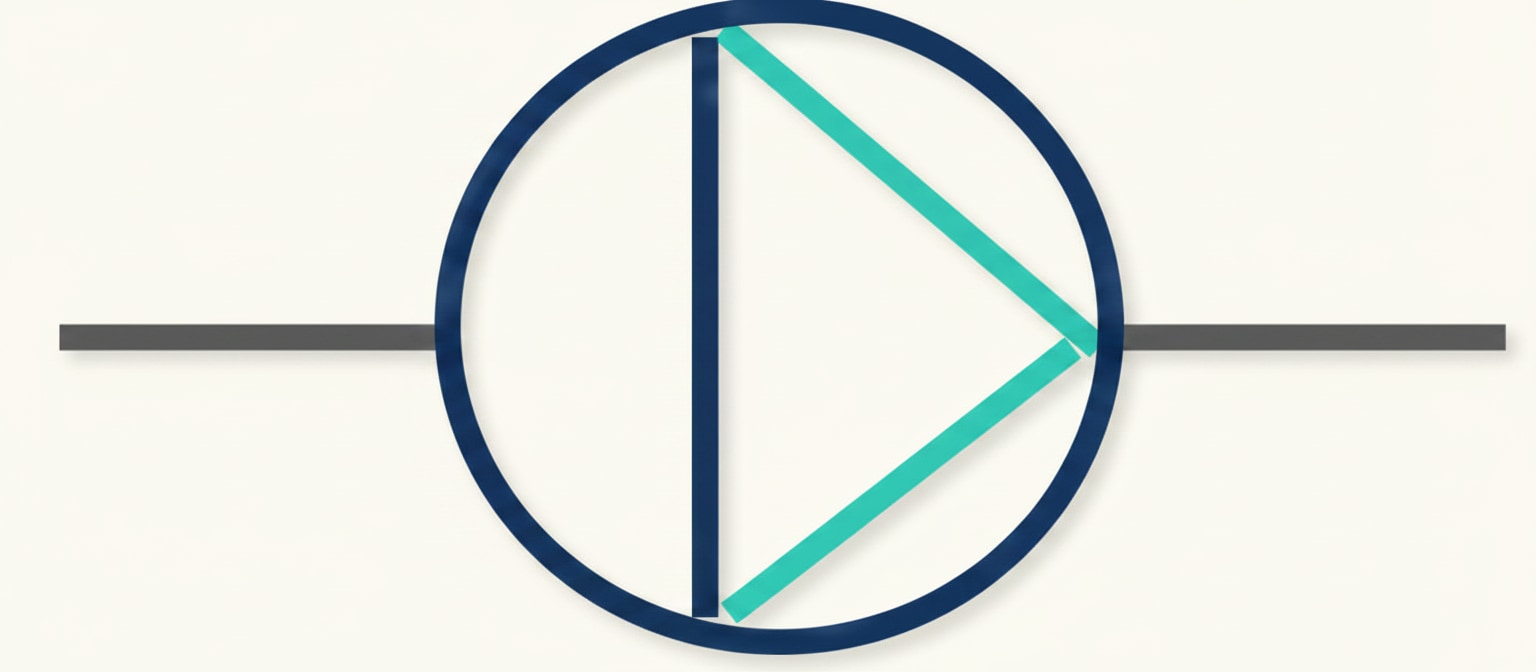

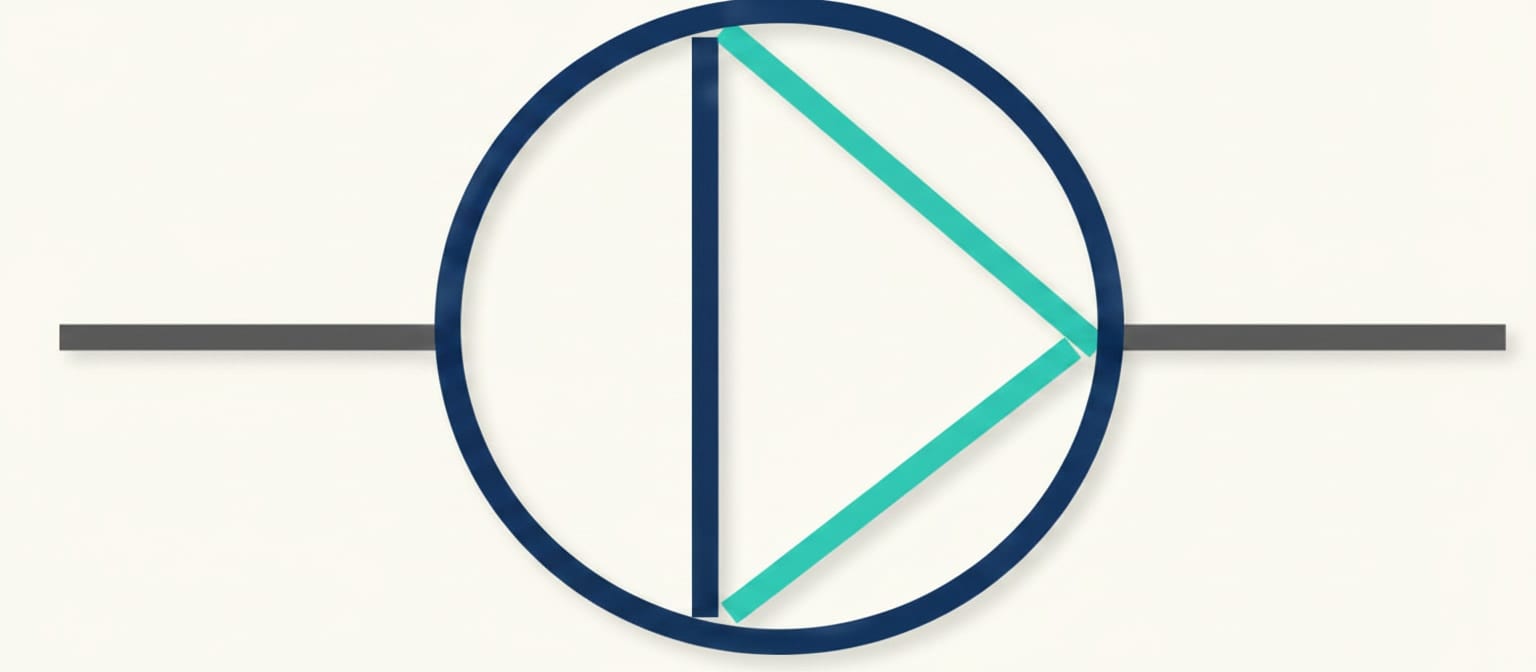

• Pump (circulating heating / boosting shower)
• Motorised valve (heating zone control — 2-port and 3-port)
• Water meter
• Temperature and pressure relief valve (unvented cylinders and sealed systems)
• Expansion vessel (sealed systems)

For the full symbol set, see the installation post in the Processes cluster.

Planning drawings vs installation drawings

Two different uses for construction drawings:

Planning drawings are submitted to the local authority for planning permission. They show what the building will look like from outside (elevations) and how it sits on its plot (site plan). Typically less detailed.

Installation drawings are what installers use on site to actually build the building. They include floor plans with dimensions, sections showing heights, schematics of systems, and component drawings of specific elements. Much more detailed.

Common exam traps

Trap 1: Job spec = WHO + standard; Schedule = WHAT fits in each property; Programme of works = WHEN work happens.

Trap 2: Estimate = rough cost; Quotation = exact price. (Covered in detail in the customer communication post.)

Trap 3: Building contract is legally binding. Estimate is not; work programme is not; job specification is part of the contract.

Trap 4: Manufacturer's instructions include dimensions, servicing, commissioning — NOT parts pricing.

Trap 5: Written sizes on drawings take precedence over scale interpretation.

Trap 6: Floor plan scale = typically 1:50.

Trap 7: Purchase/requisition order → buyer orders → delivery advice note → invoice.

Trap 8: Invoice purpose = track payments. Not list deliveries, not confirm orders.

Trap 9: Site plan shows the whole site in its surroundings. Not just the building itself.

Trap 10: Section = cross-cut showing heights and storey relationships. Not external view (that's an elevation).

Quick revision summary

Before the mock test, eight things you need to be able to produce from memory:

1. Legislation (law) vs guidance (BS, CoP, manufacturer's instructions)
2. Three planning documents: Job Spec (WHO + standard), Schedule (WHAT), Programme of Works (WHEN)
3. Manufacturer's instructions types: installation, service & maintenance, user
4. Manufacturer's instructions don't include parts pricing
5. Five drawing types: site plan, floor plan (1:50), elevation, section (1:50), component (1:50 or 1:20)
6. Written sizes take precedence over scale interpretation
7. Schematic diagrams show how systems work, not physical dimensions
8. Ordering flow: requisition → buyer → delivery advice note → invoice (track payments)
